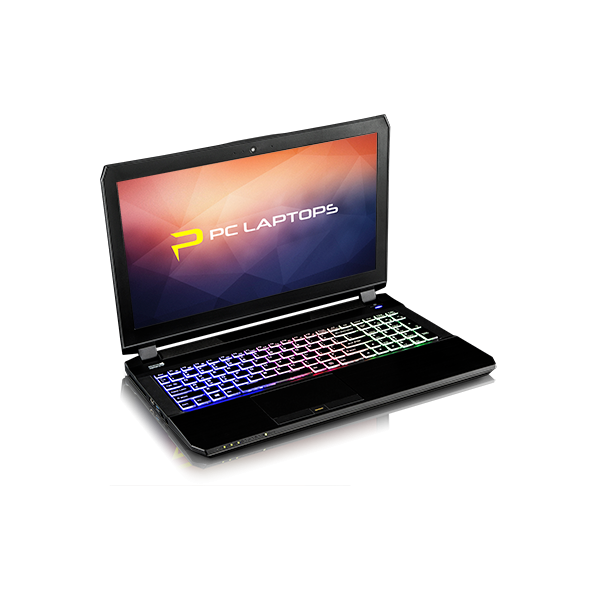

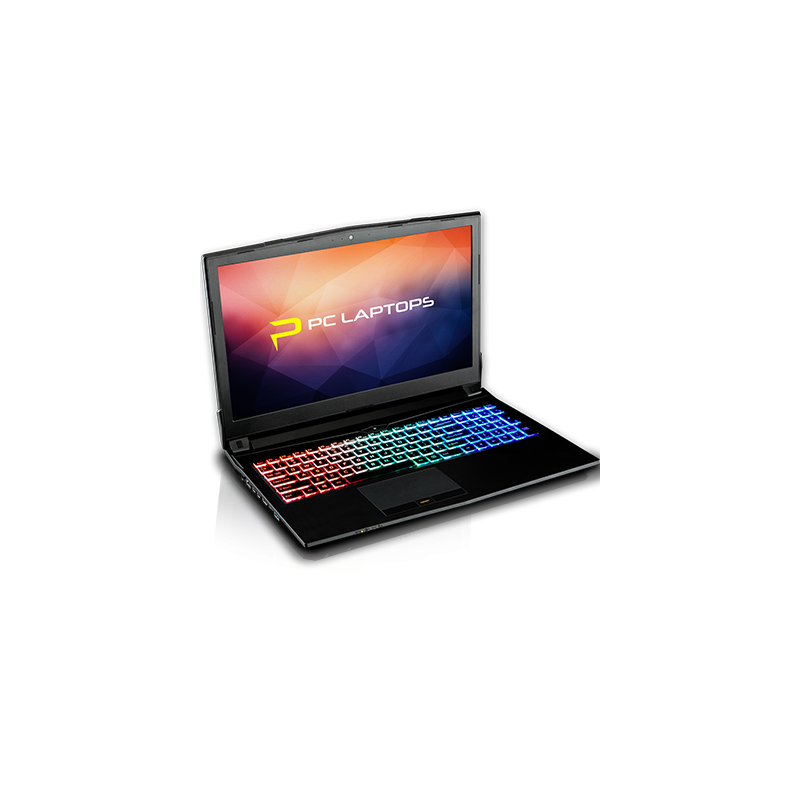

SMT-7 16" RTX 5070TI U9 275HX
Processor
Intel Core Ultra 9 Processor 275HX (2.7 GHz, up to 5.4 GHz Turbo Frequency), 8 P-cores & 16 E-cores / 24 Threads, 36MB L3 Cache, TDP: 55W
Support CPU over clocking depends on CPU SKU (Both of base frequency and ratio)
Chipset
Intel HM870 Express Chipset

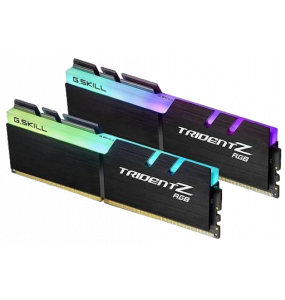

Memory
Supports Dual Channel DDR5
Two 262Pin SODIMM sockets, support for DDR5 up to 5600MHz (Real operation frequency depends on processor and memory module)
Expandable up to 96GB, depends on 8GB/16GB/32GB/48GB SODIMM module
Display
16” QHD+ (2560x1600) 240Hz, Wide View Angle, 72% NTSC, G-Sync Display, Matte Finished
Graphics
Processor NVIDIA Advanced Optimus (Dynamic Display Switching) Technology
Support 4 active displays via HDMI x1 and Thunderbolt 4 x2
NVIDIA GeForce RTX 5070 Ti Laptop GPU
- 12GB GDDR7 Video RAM
- Microsoft DirectX 12
- Support PCIe Gen5
- Maximum TGP: 140 W (including 25W Dynamic Boost)
Intel Graphics (Integrated in Core Ultra 9 Processor)
- Ray Tracing
- Variable Rate Shading
- Microsoft DirectX 12 compatible
- Intel DLBoost: DP4A

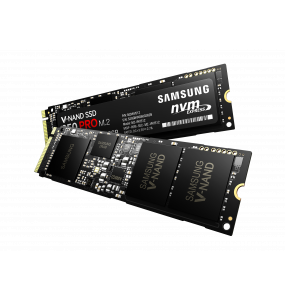

Storage
Three M.2 2280 SSD PCIe Gen4x4 interface, with support one compatible with PCIe Gen5x4 interface
Audio System
High Definition audio interface
Built-in Array Microphone
Built-in two 2W speakers
Sound Blaster Studio Pro 2
Pointing Device
Built-in Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard
Multi-languages, 4-Zone full Color illuminated full size isolated keyboard with numeric pad
I/O Ports
1 HDMI output Port (with HDCP)
2 Thunderbolt 4 Combo Ports with Power Delivery DC in (Type C)
2 USB 3.2 Gen2 Ports (Type A, with 1 x powered USB port, AC/DC)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000/2500Mbps)
Card Reader
Micro SD Push-Push Card reader
Slots
Four M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 / Gen 5x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
- 4th for SSD M.2 2280 Card with PCIe Gen 4x4 interface
Communication
Built-in Killer 2.5 Gigabit Ethernet LAN
Intel Wireless Wi-Fi 7 BE200 + Bluetooth, M.2 interface
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
Power System
Embedded 4 cells Polymer battery pack 80WH
Full-Range AC-in 100~240V, 50~60Hz, 230W AC Adapter, DC output 20V, 11.5A
OS Support
Windows 11 (64-bit)
Certificates
Windows 11 (64-bit) Logo
HDMI Logo
Weight and Dimensions
4.96 lbs. including battery pack
14.01" (w) x 10.67" (d) x 0.78" (h)
Other Features
Rear Light Bar Design
Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection
Camera Privacy Shutter
Vapor Chamber Thermal Design
FlexiCharger
Intel Dynamic Tuning Technology
NVIDIA G-Sync Technology at Dynamic Display Switch mode
Specifications are subject to change without notice
